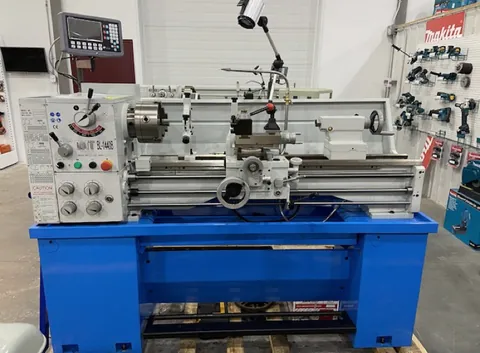

BL1440 Lathe

$8,840.00

PRICE IS SHOWN IN US DOLLARS

BL1440B 330 X 1000 X 51MM BORE 1 PHASE

  • SWING OVER BED:330 MM
  • SWING OVER XSLIDE: 198 MM
  • SWING OVER GAP: 450 MM
  • DISTANCE BTW CENTRES: 1000 MM
  • BED WIDTH: 187 MM
  • SPINDLE NOSE: D1 -5
  • SPINDLE SPEEDS: 8 Steps
  • SPEED RANGE: 90-2000 RPM
  • SPINDLE BORE: 51 MM
  • SPINDLE TAPER: MT5
  • THREADING METRIC: 0.45 To 10 MM
  • THREADING IMPERIAL: 2-/14-40 Tpi
  • TAILSTOCK TAPER: MT3
  • MOTOR: 1 Phase x 1.5 Kw
  • WEIGHT NET/GROSS: 580kgs/ 600
  • VOLUME: 2.1m3/ 2.31
  • PACKING SIZE L X W X H: L 2,000mm X W 750 X H 1,540
